product description

The use of bimetallic finned tube for the condenser, in the same volume to improve the cooling area and the effect of high cooling efficiency, small size, wide range of applicable conditions.

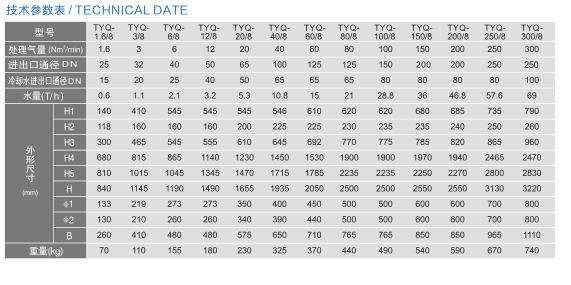

Technical Parameters

Working pressure: 0.6 ~ 1.0Mpa (according to the requirements of 1.0 ~ 4.0Mpa)

Gas inlet temperature: ≤ 160 ℃ (air-cooled ≤ 120 ℃)

Gas outlet temperature: ≤ 42 ℃

Cooling water temperature: ≤ 32 ℃ (water-cooled)

Ambient temperature: ≤35 ℃ (air-cooled type)

Cooling water pressure: 0.25 ~ 0.4Mpa

Gas resistance drop: 0.02 ~ 0.4Mpa
